Class 12 - EG - Pre Board 2 Exam
St. COLUMBA’S SCHOOL
Ashok Place, N. Delhi – 110001
Pre-Board 2, February 2021
Class XII, Engineering Graphics
Time: 3 hrs MM
: 70
Instructions
1. Attempt all
questions.
2. All
dimensions are in mm.
3. Follow the
SP: 46-1988 codes (with first angle projections)
4. Use both
sides of the drawing sheet, if required.
5. Missing or
mismatching dimensions, if any, may be suitably assumed
6.
Diagrams are not to scale. Follow the dimensions only.
7.
Draw neat projections/ views.
Q 1 (a) Construct an Isometric scale of length 80 mm with
subdivisions. (4)
(b) Draw isometric projection of a pentagonal pyramid in
the vertical position having base side 40 mm and having one of the base edges, away
from the observer parallel to the VP. (7)
(c) Draw the isometric projection of a hemisphere of diameter 60 mm
placed centrally on top of a hexagonal slab (prism) of base side 40 mm
and
height 30 mm.
(14)
Q 2 (a) Draw to scale 1: 1 the standard profile of knuckle
thread of pitch 30 mm.
Give standard dimensions. (7)
OR
Draw to scale 1: 1 the FV and TV of a square nut keeping its axis
vertical
and
having nominal diameter 20 mm. Give standard dimensions.
(b) Sketch freehand FV and TV of a Pan Head Rivet in vertical position
having diameter of 20 mm. Give standard dimensions. (5)
OR
Sketch freehand FV and TV of a plain stud M 20 keeping the axis in the
horizontal
position. Give standard dimensions.
Q 3 Answer the following Multiple Choice
Questions (MCQs). (1 mark each) (5)
1.
Which of the
following is a pictorial drawing?
(a)
Orthographic (b) Isometric (c)
Development (d) Pantography
2.
The Isometric
projection is shorter than Isometric drawing by?
(a)
19.5 % (b) 81.5
% (c) 30 % (d) 18.5%
3.
The threads that
offer least resistance to motion and also used in screw jacks is?
(a)
Metric (b) BSW (c) Knuckle (d) Square
4.
The angle of
chamfering on a nut is?
(a)
100 (b)
150 (c) 200 (d) 300
5.
What is the angle
between the main scale and the isometric scale?
(a)
300 (b) 450 (c) 150 (d) 750

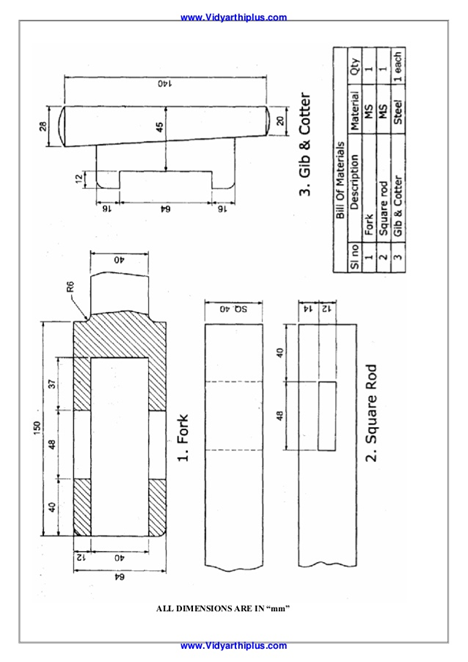

Q 4 Fig below shows the parts of a Gib and
Cotter joint. Assemble its parts
correctly
and then draw the following views to 1:1 scale.
(a)
Front view upper
half in section (12)
(b)
Top view of the
assembly (6)
(c)
Left hand side
view (6)
Print tile, scale used, projection symbol and give all important dimensions (4)
